multi-function packing machine for powder filling and sealing

Short Description:

multi-function packing machine , here show professional for the powder , from rough to fine or super powder pouch bag filling and sealing , the process starts with a cylindrical roll of film, the vertical bagging machine will transfer film from the roll and thru the forming collar (sometimes referred to as tube or plow). Once transferred thru the collar the film will then fold where upon the vertical seal bars will extend and seal the back of the pouch. Once the desired pouch length is transferred it is filled with product. Once filled the horizontal seal bars will then close, seal and cut the pouch providing a finished product that includes a bag with top/bottom horizontal seals and one vertical back seal.this machine as the bag filler including all industries like snack food , coffee , powders , frozen food , candy , chocolates , tea ,sea food and more


  • Mode: BHFP-300
  • Product Detail

    Product Tags

    Introduction:

    multi-function packing machine , here show professional for the powder , from rough to fine or super powder pouch bag filling and sealing , the process starts with a cylindrical roll of film, the vertical bagging machine will transfer film from the roll and thru the forming collar (sometimes referred to as tube or plow). Once transferred thru the collar the film will then fold where upon the vertical seal bars will extend and seal the back of the pouch. Once the desired pouch length is transferred it is filled with product. Once filled the horizontal seal bars will then close, seal and cut the pouch providing a finished product that includes a bag with top/bottom horizontal seals and one vertical back seal.this machine as the bag filler including all industries like snack food , coffee , powders , frozen food , candy , chocolates , tea ,sea food and more

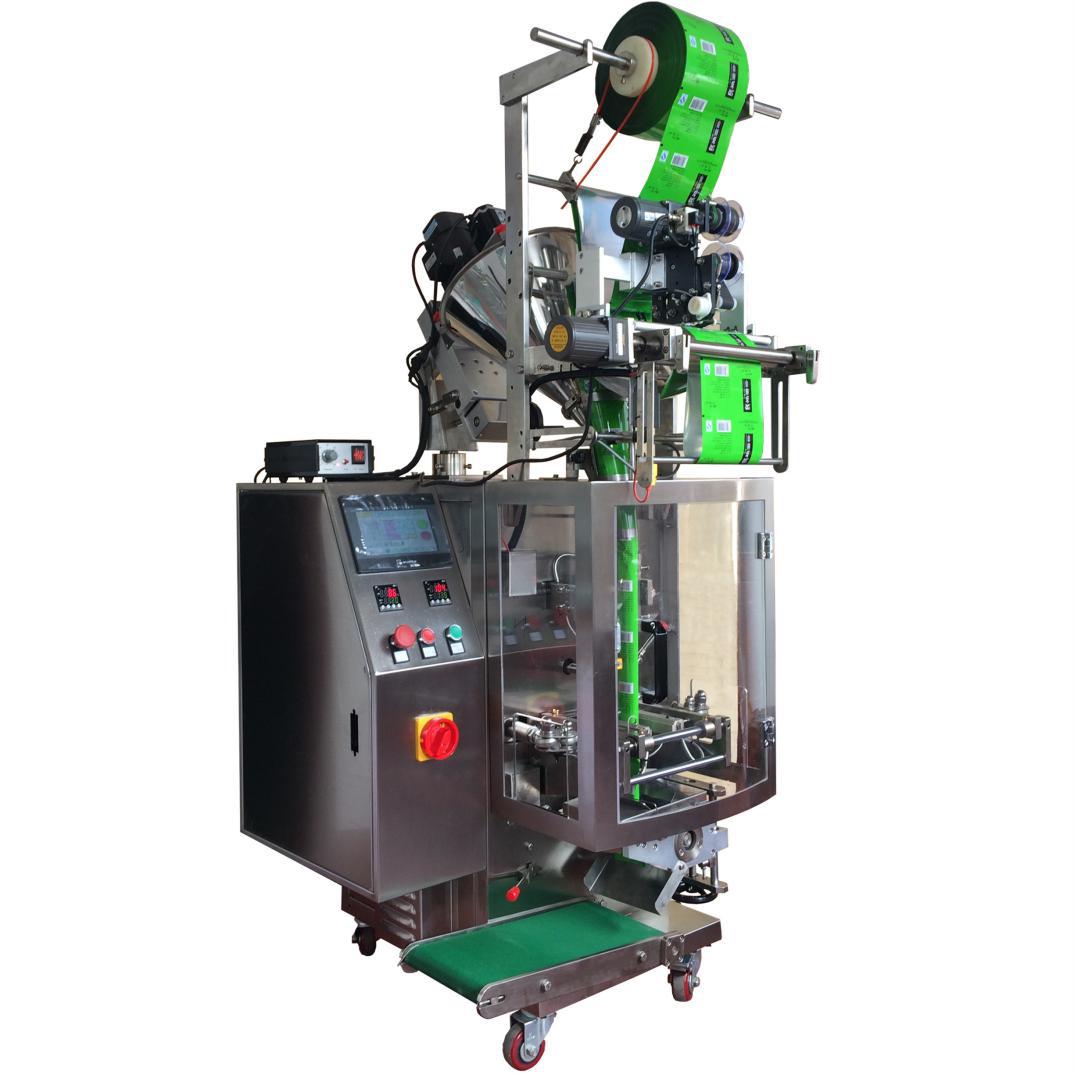

    BHFP-300 MULTI-FUNCTION PACKING MACHINE

    THE EXPERT OF THE POWDER POUCH FILLING AND SEALING MACHINE

     This filler bagging machine Widely used for packing various powder in food, pharmaceutical industry, such as coffee powder, spice powder, tea powder, medical powder etc.

    dfb

    FIVE REASON SHOW WE ARE PROFESSIONAL

    REASON 1: because the difference flow-ability of powder from grain to fine , the professional reasonably design most important ,try best reduce angle of repose , keep the natural compressible , down the coefficient of internal friction ,SUS 304 stainless steel for whole packing machine body from goods feeding ,frame and control box ,ensure the material touch the goods is food grade and enough smooth

    Detail drawing  (4)

    REASON 2: professional auger measuring system for this packing machine ,ensure the accurate measurement , the servo motor we bought from international brand

    Detail drawing  (5)

    REASON 3:

    multi-function packing machine for powder filling and sealing  (1)

    PLC controlled display system, fault alarm system, circular wind electric control box design suitable for 24 hours working , the PLC from international brand

    REASON 4:

    htr

    During the roll film move , the film will change because of tension strength , the result make the finally bag length not exactly correct , our machine with the special device for adjust the whole film tension for keep the natural situation

    REASON 5: International brand list for the packing machinery ‘s filling parts , sealing machine and whole machinery run key parts , top quality , long life that we always effort

    Detail drawing  (3)
    vd

    CASE SHOW (BAG SIZE 15X14CM)

    multi-function packing machine for powder filling and sealing  (2)
    jty (1)
    jty (2)
    jty (3)

    MACHINERY SIZE

    svd

     TECHNICAL SPECIFICATION

    Technical Specification

    Descriptions

    Capacity

    30-70 bags/min (determined by powder fluidity and the film)

    Sealing Type

    3-Side Sealing

    Sealing Method

    Heat Sealing

    Filling Range

    2-100 g

    Film Width

    50-280 mm

    Finished Bag Size

    W 25~140mm; L 30~180 mm

    Filling System

    Screw Conveyor

    Voltage

    220V;  50HZ; 1.9KW

    Driven Type

    Electric (and Pneumatic if seal round corner bag)

    Controller Screen

    WIENVIEW

     PLC System

      Mitsubishi

    Size and Weight

    L 950 x W 700 x H 1030 mm; 280 kg

    vd

    KNOW MORE BEFORE ORDER

    trh

    WHICH TYPE PACKING MATERIAL SUITABLE ?

    tyj (1)
    tyj (2)

    Packaging Materials: Polyester+polyethylene (PET/PE), Paper+polyethylene (PAPER/PE), Polyester/aluminum casting +polyethylene (PET/AL/PE), OPP+polyethylene (OPP/PE) etc which can be sealed by heating.

    trh

    WHICH KIND OF MATERIAL YOU WILL PACKING , CAN SHOW US PICTURE?

     Powder  , sugar , salt , rice , grain , chemical , food ......

    Detail drawing  (2)
    trh

    WHICH TYPE BAG FOR CHOOSE :

    our packing machine , not only for bag filer , but also for sack sealing , you can choose the bag type depend your production ,three side sealing , back sealing or four side sealing . difference type the machinery structure difference , the cost difference

    Detail drawing  (1)
    trh

    WHICH TYPE PATTERN YOU LIKE ?

    sdv_副本
    trh

    HOW ABOUT THE BAG WIDTH AND LENGTH ?

    Here the size we talked is the finished bag width and length ,after filling and sealing be the sack .

    trh

    HOW ABOUT THE BAG WIDTH AND LENGTH ?

    0-10G , 0-50G ,50-100G, 0-100G ,or other size .

    trh

    HOW ABOUT THE GUARANTEE FROM BRENU OFFER ?

    One year on non-wear parts and labor. Special parts discuss bu both

    trh

    DO INSTALLTION AND TRAINING INCULDED IN THE MACHINERY COST ?

    Single machine:we done installation and test before ship, also supply competently video show and operate book .

    trh

    WHAT TYPES OF PACKING MACHINERY DOES BRENU OFFER?

    We offer complete packing systems that including one or more of the following machines , also  offer manual , semi-auto or full auto line machine . like crusher ,mixer , weight , packing machine and so on

    trh

    HOW DOES BRENU SHIP MACHINES?

    We box smaller machines, crate or pallet larger machines. We ship FedEx, UPS, DHL or air logistic or sea , Customer pickups are protected well. We can arrange partial or full container shipping.

    trh

    HOW ABOUT THE DELIVER TIME ?

    All small regular single machine ship in any time , after test and packing well .

    Customized machine or project line from 15days after confirmed the project
