BRENU Sauce Liquid Paste Packing Machines(PE monolayer or more layer)

Short Description:

Ice pop ,ice lolly ,Jelly small paste or liquid packaging machine, feeding by film stretching, the plastic film is turned into a cylindrical film by a fixed size former, the back is sealed by a longitudinal sealing device, and the product filling amount is carried out by piston type or timing. Metering, at the same time the paste or liquid enters the bag, and the horizontal sealing mechanism cuts the length and position of the packaging according to the color code photoelectric detection device.

Send email to us

Product Detail

Product Tags

BRENU EXCLUSIVE TECHNICAL FOR ONLINE PRINT (a)

Because of the particularity of sealing, the traditional sealing packaging machine is mainly suitable for the packaging of composite film, the main materials are Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

But for the packaging of popsicle, ice pop or jelly, the LDPE film which is cheap and easy to purchase is more preferred. The thickness of this material is 60-65 micro. The particularity of this material is a challenge for the structural setting of the equipment and the solution of material leakage.

BRENU, launched LDPE professional film packaging machine on the basis of combining material properties

Machine features

This machine can automatically complete all the work of measuring, bag making, filling, sealing, coding (option), cutting, counting, etc., and automatically completes the packaging of materials;

1. The servo can complete the measurement work more accurately;

2. Bag sealing: back sealing, mold shape and texture can be customized;

3. Ensure that the sealing effect is not affected, and the packaging speed can be adjusted;

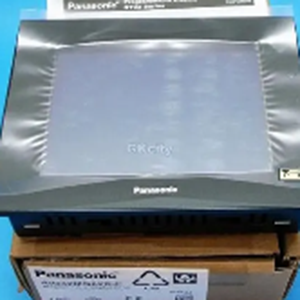

4. Using advanced technology, user-friendly design, Japan "Panasonic" PLC+5.7" touch screen control system, it is more convenient to monitor, control, and set production parameters in real time on the touch screen, with a high degree of automation;

5. Fault self-alarm, self-shutdown, self-diagnosis, safe and simple to use, fast maintenance;

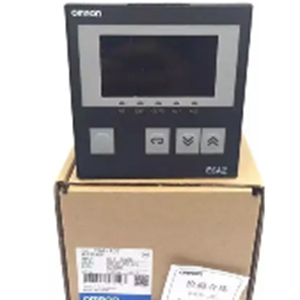

6. Omron intelligent temperature control, the temperature of vertical sealing and horizontal sealing molds are controlled separately, controllable and adjustable, and the temperature deviation is ±1°C;

7. Functional status control: stop by ordering, accumulative production quantity, display production quantity, set total output stop, set filling weight;

8. Using high-sensitivity electric eye, can automatically track and locate the printing cursor, and can obtain a complete trademark pattern when packaging packaging materials with color labels;

The whole machine is made of 304 stainless steel and aluminum alloy (complying with GMP standards), and the ground contact adopts universal wheels and adjustable lifting foot cups, which is convenient for changing the position and height of the equipment;

Machinery structure

No	Part	Detail	Remark

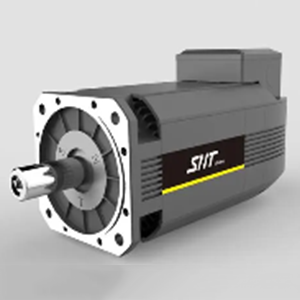

1	Sealing drive		Servo motor
2	PLC		PLC+5.7 touch screen control system
3	Temperature control		intelligent temperature control

MACHINERY CHARACTER:

NO	ITEMS	DESCRIPTION
1	Model	BRNL-600
2	Material for filling	liquid
3	Measuring way	Time measuring
4	Sealing way	Back sealing
5	Date print	including
6	Sealing drive	servo
7	Precision	±0.3-1%
8	Packing speed	20-50bags/line
9	Film max width	190mm
10	Film max length	70-200mm
11	Bag width	16-40mm
12	Sealing and cut layer	Two layer
13	Machinery material	Food grade stainless steel 304#

ELECTRIC PARTS LIST

NO	NAME	MODEL AND SIZE	BRAND	Q’TY	MARK
1	PLC	FP-XH-C40T	Panasonic	1
	PLC expend	AFPX-TR8	Panasonic	1
2	Touch screen	MT4414TE	kinco	1
3	Servo motor and driver	LXM23DU10M3X	Schneider	1
4	Servo motor	BCH1302N12A1C	Schneider	1
5	PID temp control	AI-218-D1-G-L0	YUDIAN	3
6	Middle relay	RJ1S-CL-D24	China	5
7	Middle relay base	SJ1S-05B	China	5
8	switch	YW1L-M2E01Q4G	China	1
10	Urgent stop switch	YW1B-V4E01R	China	1
11	proximity switch	PSE17-5DN	Autonics	3
12	safety door switch	TZ-93B	tend	2
13	Color mark sensor	KTM-WN11182P	SICK	1
14	slot switch	EESX-671-WR	OMRON	1
15	2P circuit breaker	NB1L-40 2P C10/2P+VE+30mA	Chint	1
16	2P circuit breaker	DZ47-60 2P D15	Chint	1
17	2P circuit breaker	DZ47-60 2P D10	Chint	1
18	Main power switch		China	1
19	switching power supply	LRS-150-24	China	1
20	solid state relay	SAP-4825D		3
21	Therm couple	K(0-400degree)		3
22	proximity switch	GL-18H	Panasonic	2
23	proximity switch	PSE17-5DN2	Autonics	1
	server Driver	LXM23DU04M3X	Schneider	2
24	servo motor	BCH0602O12A1C	Schneider	2
25	Material detection switch	CR30-15DN	Autonics	1
26	slot switch	EE-SX671A	OMRON	1
29	Detection electric eye	PZ-G42N	keyence	1
30	proximity switch	PR08-2DN	AUTONICS	2

BRENU EXCLUSIVE TECHNICAL FOR ONLINE PRINT (b)

The packaging film is generally printed and then packaged by color code detection. Due to the fast speed of the printing machine, the printing ink is a plastic ink, which is not environmentally friendly, the cost of plate making is high, and the MOQ is large. For small customers and R&D customers, the project is blocked. In order to help customers reduce the MOQ and cost, and realize the needs of more and customized pictures, a single-color or multi-color independent inkjet printer is hereby installed on the packaging machine. The machine feeds the material and sets the transmission signal of the final packaging size. After the printer receives the transmission signal, it will automatically print a single or multiple colors, so that the bag is formed, filled and printed at the same time. Help customers to achieve on-demand printing and on-demand printing of different patterns, instead of the trouble of mass printing MOQ, instead of expensive plate making, and the printing ink is environmentally friendly ink, which can be completely used in the food industry, instead of normal Printing with plastic ink.

Machine features:

1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;

2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The controller has the advantages such as setting the length of the bag, the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

Applicable packing film:

Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

The machine is suit for automatic filling and packing liquid/paste/sauce/cream item, such as milk, juice honey, hair shampoo, tomato paste, salad dressing, jam ect. The machine adopt the pneumatic pump dosing unit which have the machine advantage of suit for viscous liquid item with high efficient and reliable performance. The most important is the machine equip with small horizontal ribbon blender mixing machine, this will make the machine much suit for seasoning paste/sauce, such as chilli paste, for the mixing machine will have the paste evenly packaged with less weight

Specification:

Product Name	Paste and liquid packing machine
Weighting Range	3-100 ml (±1%)
Maximum bag-making width Allowable bag-making length	4-20 cm (Custom available) 4-16 cm (Custom available)
Packing speed	15-25bags/min
Hopper volume	30/50LL (Custom available)
Package dimension	63x39x100cm 30kg 90x55x117cm 77kg
Power Supply	110V/220V/230V/240V
Power Consumption	800W

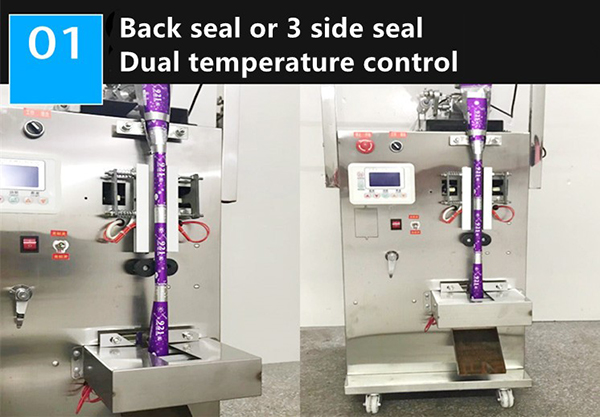

	Back seal or 3side sealDual temperature control

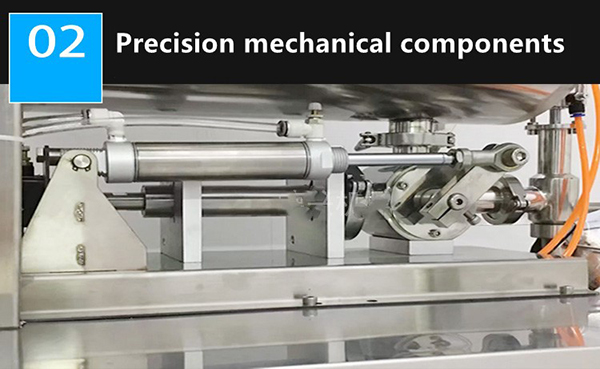

Ice pop filling machine measure with precision mechanical components piston

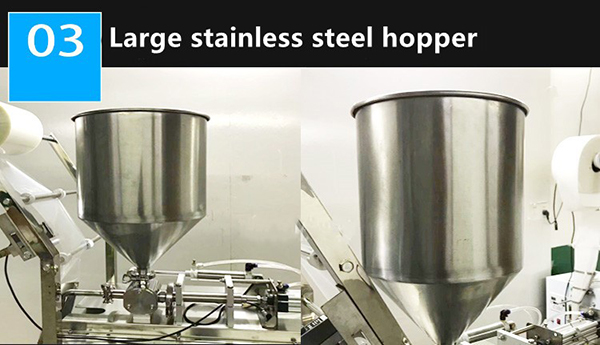

	Here is large stainless steel 304# or316L hopper

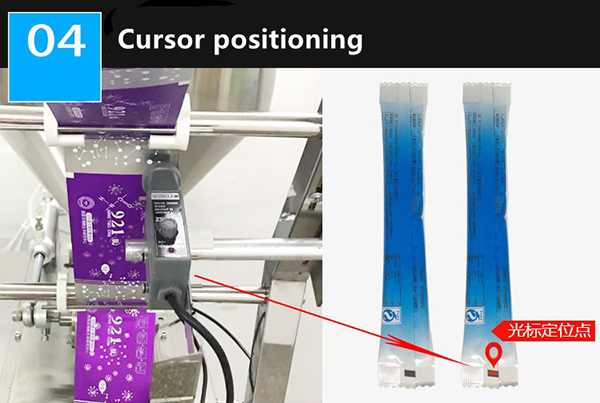

High precision color position , ensure print quality well

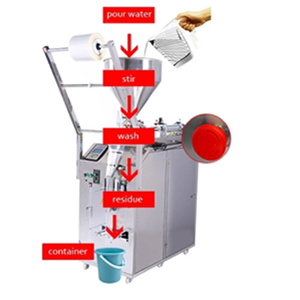

	Automatically clean: Steps: pour water to the funnel Mixer automatically mix 3. Press the clean up button

Machinery structure

No	Part	Detail	Remark

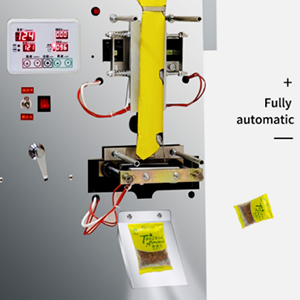

1	Back sealing double temperature control		Pushing the heat seal back and forth Stable operation good effect

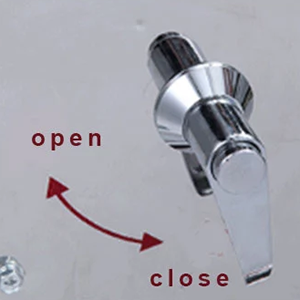

2	Opening and Closing switch		Pull bag wheel opening and closing

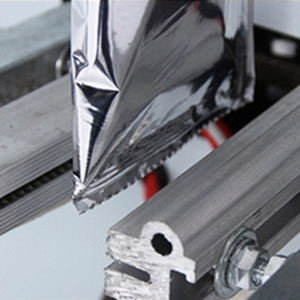

3	Electric plated sealing coating

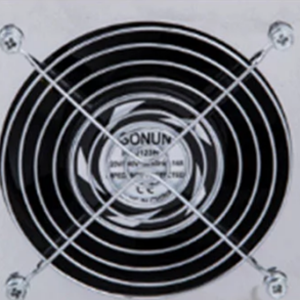

4	Cooling Fan		Cooling in place Work safer

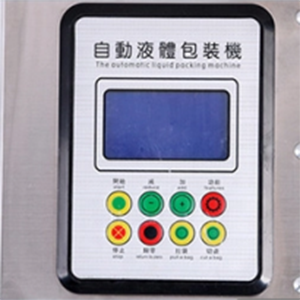

5	Intelligent control panel		Easy to do setting, fast and accurate

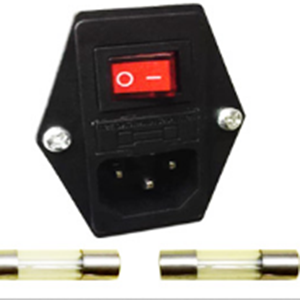

6	Leakage protection switch

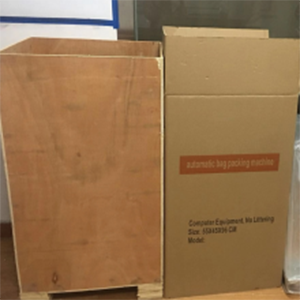

11	Packing way

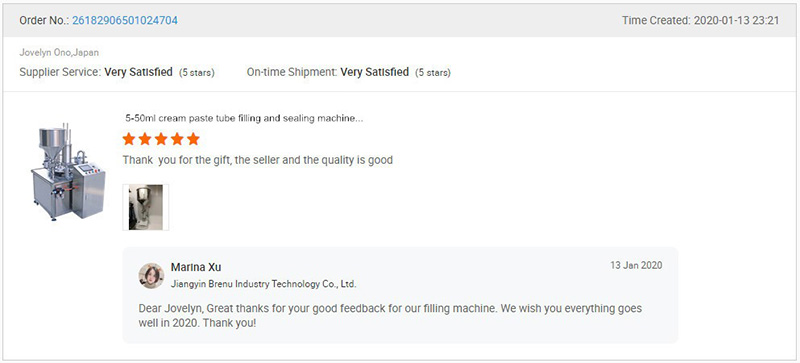

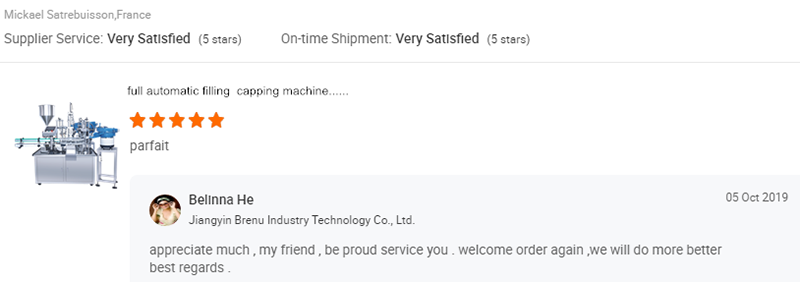

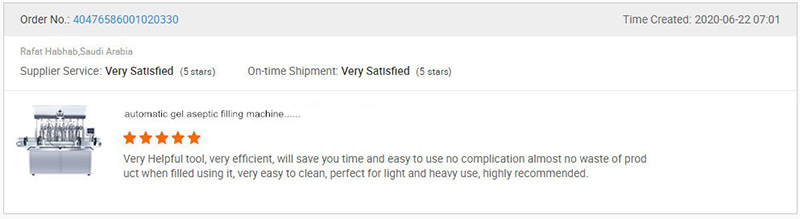

BUYER FEEDBACK
