Automatic Small Liquid Oil Horizontal Milk Wine Dish Soap Aerosol Spray Juice Tea Detergent automatic Water Sachet filling packing machine

Short Description:

sachet water is drinking water packaged in a sachet for personal use and retail sale. The water it uses can come from anywhere, including spring water, well water, pure water, tap water, or even untreated or contaminated water.BRENU for water beverage filling machine more than 25 years , small or big capacity as request . this type machine not only for packing water also for Liquid Oil Horizontal Milk Wine Dish Soap Aerosol Spray Juice Tea Detergent
Before filling ,it can link the water treatment . can choose simple or more grade filter depend on the water quality

Send email to us

Product Detail

Product Tags

The bagged water or water sachet packing is packed with food-grade special composite film, which is not easy to be damaged because it can withstand great pressure. Compared with bottled water, the biggest advantage of bagged water or water sachet packing is that it fundamentally eliminates the "secondary pollution" of drinking water. Compared with bottled water, the principle of water outlet is completely different. The bagged water or water sachet packing is discharged by atmospheric pressure, which is positive pressure, while the bottled water is discharged by air-water replacement, which is negative pressure. Drinking water is sealed throughout the whole process, and it does not come into contact with air from beginning to end, avoiding secondary pollution, while drinking bottled water is fully open drinking.

PROCESS FROM WATER TREATMENT TO FILLING PACKING

MACHINERY DETAIL

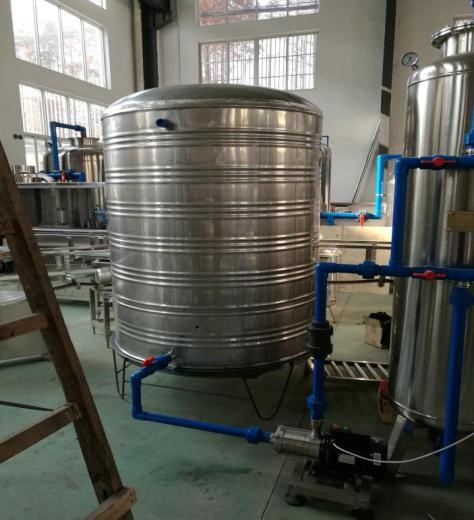

WATER TANK

1	Water Tank material	Stainless steel 304#
2	Thickness	1mm
3	Capacity	2000L

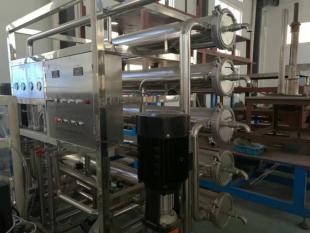

RO SYSTEM

The core component of the device is the southern pump, which has simple structure, convenient operation and high technical level. Under the condition that the conductivity of the raw water is less than 250us/cm, the water quality index of the water treated by this device can reach 100% of the national pure water. The product is currently the most advanced pure water treatment equipment for water filling and packing machine

1	Material	Stainless steel 304#
2	Mold cover	Stainless steel 304#
3	Filter film	Imported
4	Pipe fitting valve	Stainless steel 304#
5	Salt rejection percent	98%
6	Recovery	50-60%

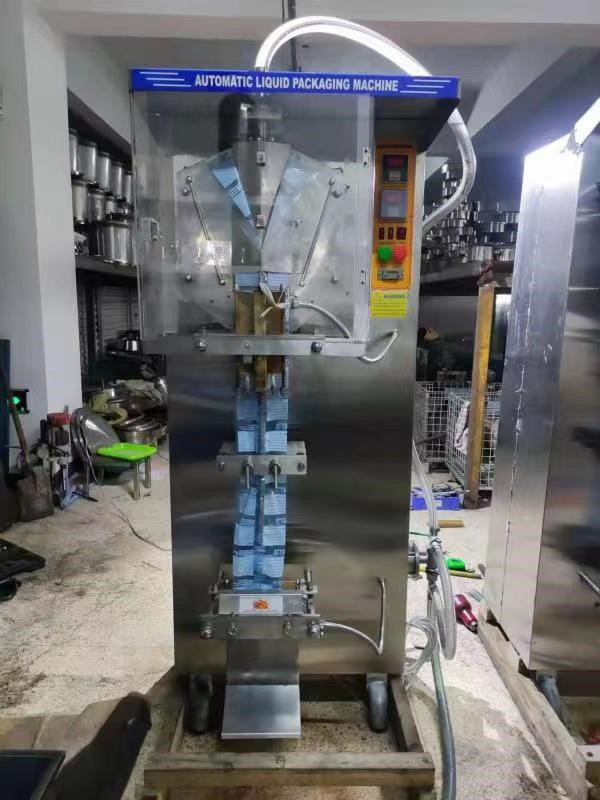

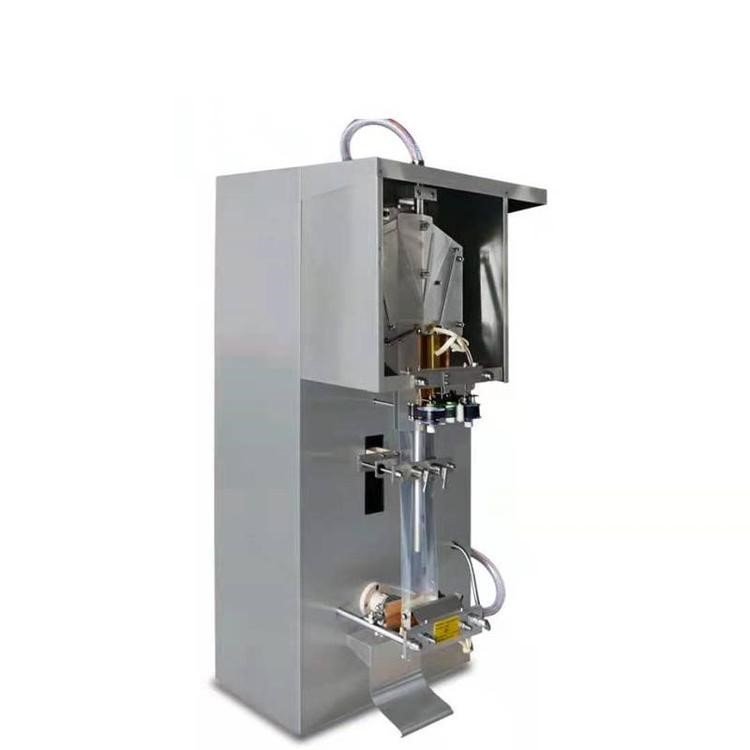

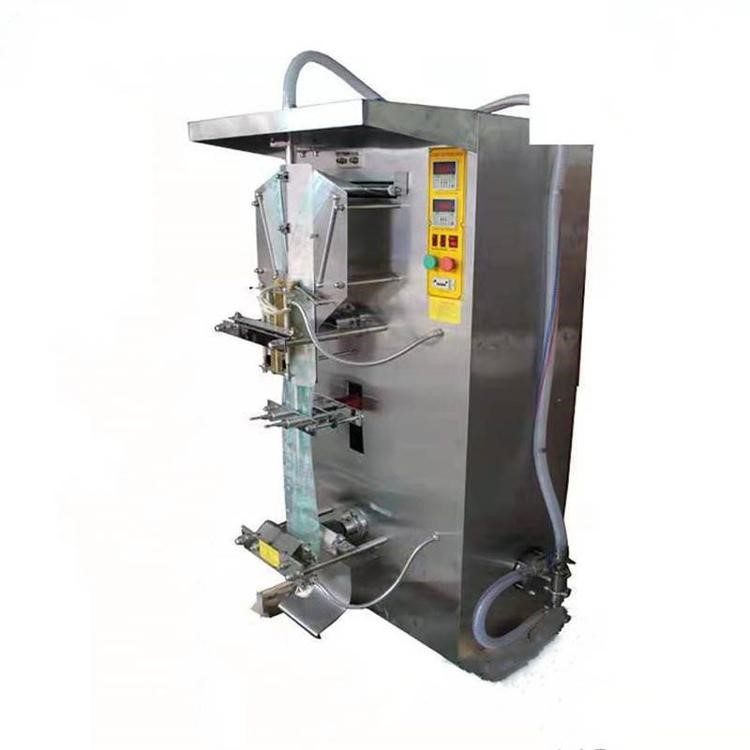

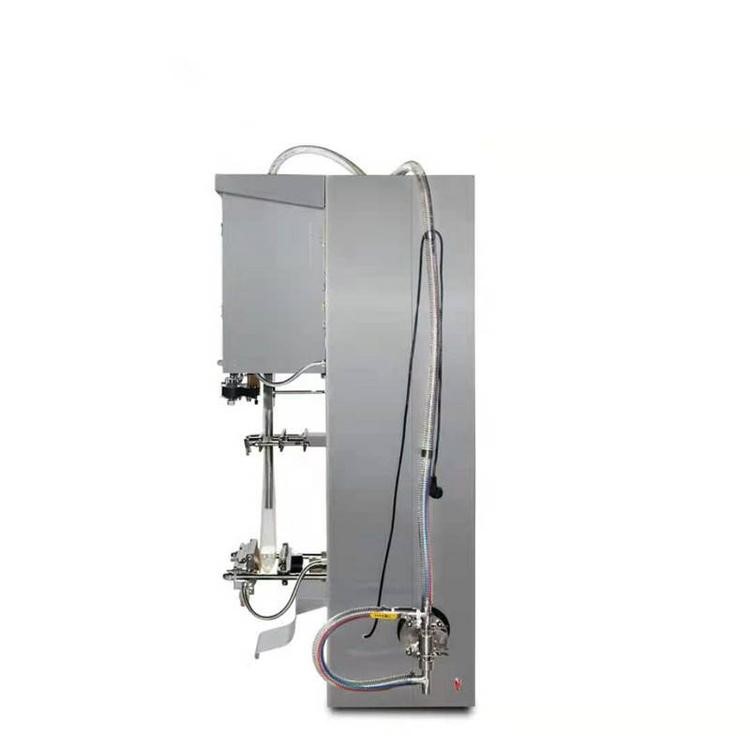

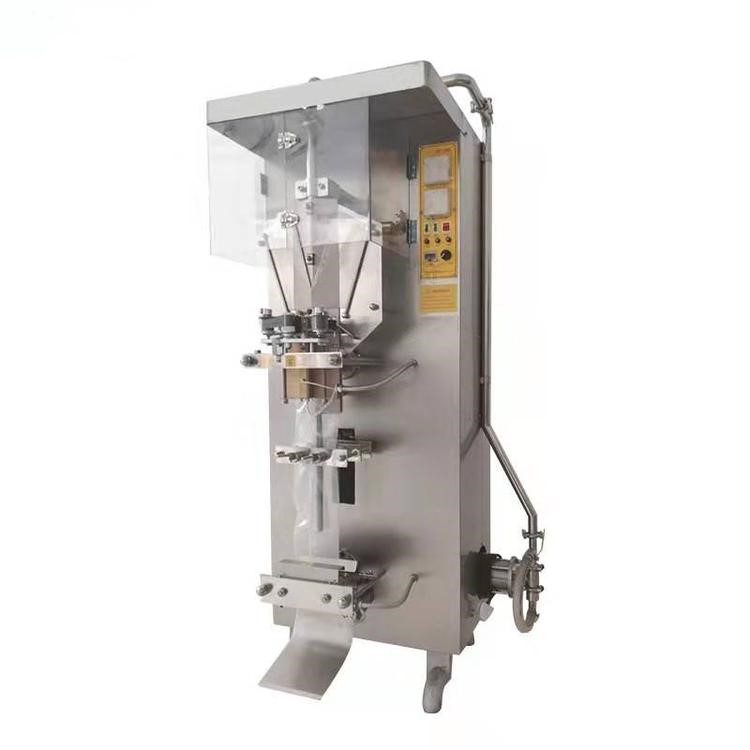

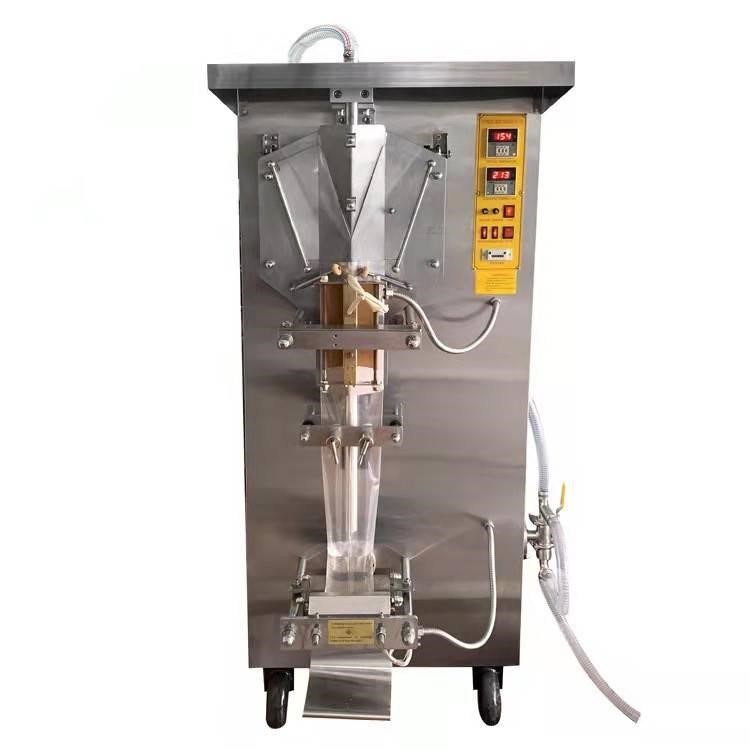

3.WATER SACHET PACKING MACHINE

Free parts :

High-temperature cloth

Heater

Transverse sealing strips

Vertical sealing strips

Allen wrench set

Screw driver

Open-end wrench

V-belt

Oil gun

Functions :

Bag(pouch/sachet) forming ,filling ,sealing

UV sterilization

Thermal vertical sealing

Date print

Linear bag traction

Quantitative filling

Thermal transverse sealing

Bag-cutting

Automatic counting

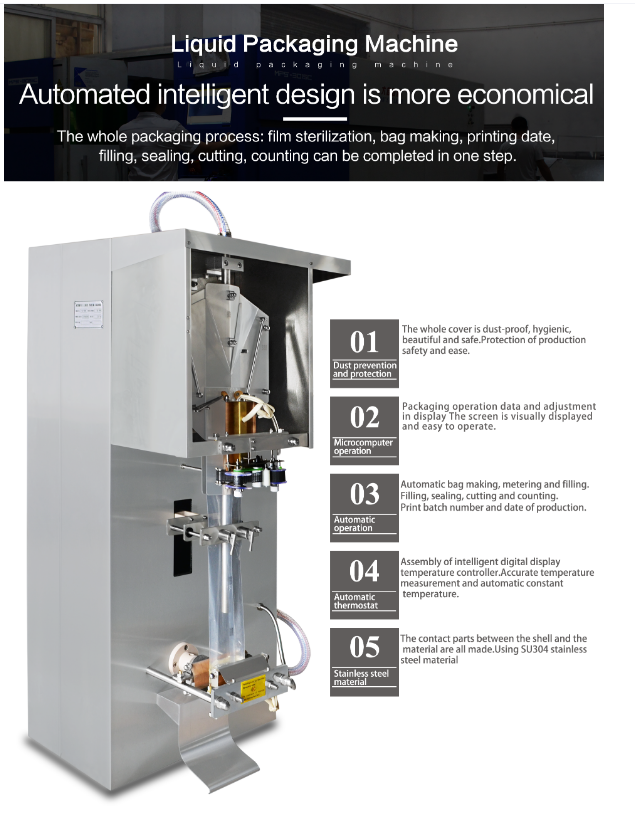

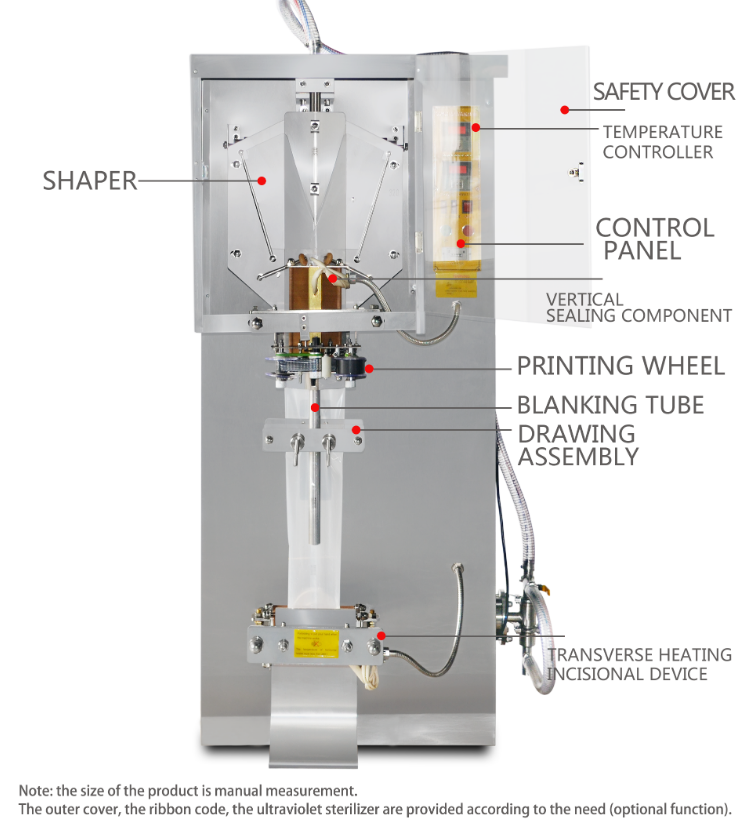

01 the whole cover is dust-proof ,hygienic , beautiful and safe ,protection of production safety and easy

02 packing operation data and adjustment in display , the screen is visually displayed and easy to operate

03 automatic bag making material and filling ,sealing ,cutting and counting , print batch number and date of production

04 assembly of intelligent digital display temperature controller ,accurate temperature measurement and automatic constant temperature

05the contact parts between the shell and the material are all made by SUS304 stainless steel material

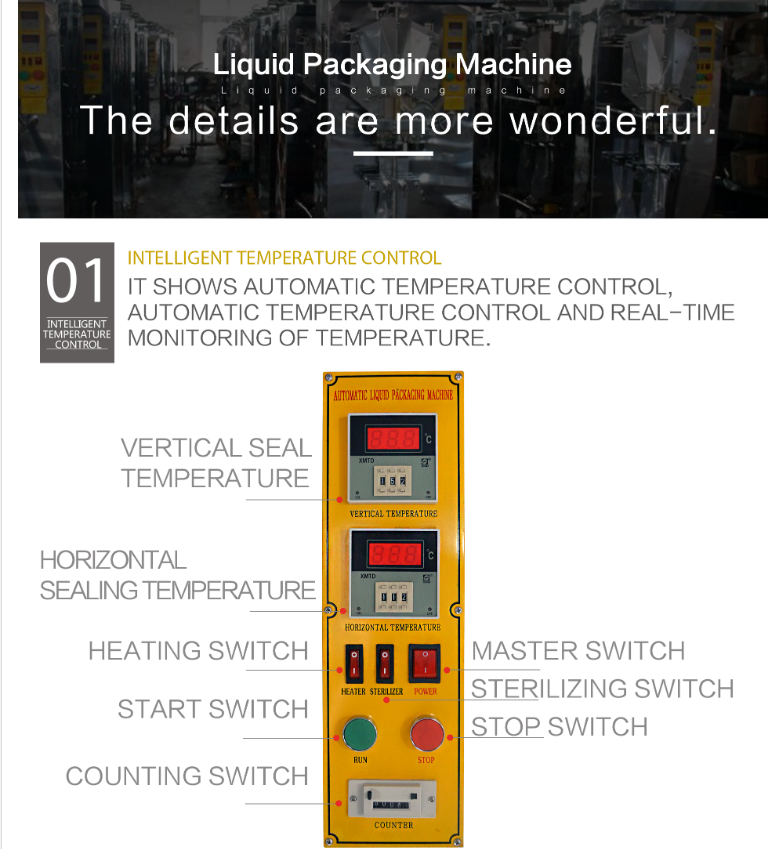

INTELLEGENT TEMPERATURE CONTROL

IT SHOWS AUTOMATIC TEMPERATURE FOR REAL TIME CONTROL AND THE MONITORING OF TEMERATURE

INTELLIGENT PACKING EXQUISITE , SMOOTH

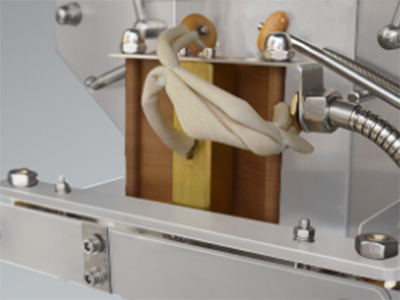

VERTICAL SEALING COMPENT

The pure copper vertical seal has the advantage of fast heating , uniform temperature and good heat conduction effect without deformation

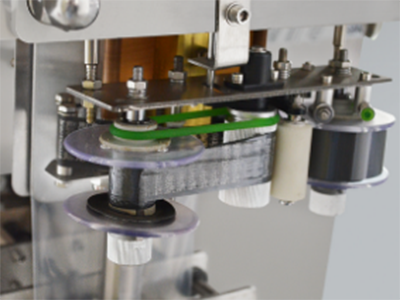

CODING COMPONENT

Two kind of ribbon and steel stamp are available

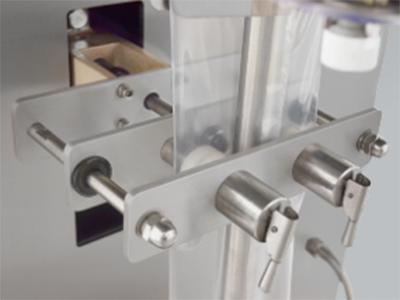

BAG PULLING COMPONENT

Smooth bag length accuracy

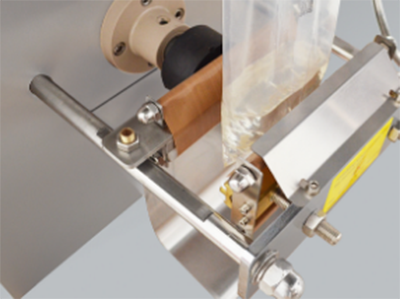

HORIZONTAL SEALER

Pure copper used to generate heat quickly

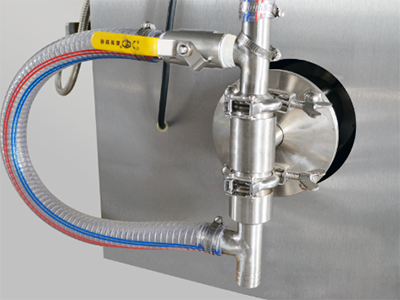

STAINLESS STEEL PLUGER PUMP

Accurate measurement ,convenient adjustment, strong and durable , healthy and nice appearance

TECHNICAL SHOW

No	Item	Description
1	Film width	320mm
2	Packing speed	2000bag/h
3	Packing range	100-1000ml
4	Packing precision	±1.5%
5	Motor Power	0.75kw
6	Vertical sealing power	0.3kw
7	Horizontal sealing power	0.5kw
8	disinfection lamp	15w
8	Voltage	220V/50Hz
9	Machinery weight	330kg
10	Packing size	850x760x1830mm
11	Color sensor	Including
12	Bag size	15x28.4cm
13	Air request	0.6-0.8m³/min(compressor ready by buyer)
14	Data print	Stamp type

PS : Beverage filling machine, water filling or packing machine is a plastic film packing , except pouch sachet automatic filling packing machine ,we supply bottle type filling and capping machine, is a multi-functional beverage filling machine. It is used for filling carbonated beverages, soda water, salt soda and other carbonated beverages, as well as non-sparkling beverages such as fruit juice beverages and purified water. One machine has multiple functions and is a new type of filling machine with high practicability.

Welcome contact in any time ,customized line is our advantage
